Metal beam guardrail is semi-rigid w or thrie profile galvanized barrier. Metal beam guardrail is the most common roadside rail in use in most countries in the world. Tongsu traffic supplies various standard types of metal beam guardrail in two waves w rail and three waves thrie beam, effective lengths in 3.2m, 3.81m, 4.0m.
Features
Metal beam guardrail is cold roll formed from steel coil and cut to standard lengths. It is then punched, slotted and hot dip galvanized in accordance with AASHTO M180 and client's specifications.
For instance, our metal beam guardrail is available on stock in standard effective lengths 3.20 meters for U.A.E and 3.81 meters for Saudi, Oman, Qatar and 4.0 meters for African and eastern Asian countries such as Mauritius, Kenya, Malaysia, Indonesia, Brunei, Philippines, etc. We also customize longer rails for some American countries such as Brazil, etc.
Metal beam guardrail conform to the designation of AASHTO M180 and AS/NZS 3845 Road safety barrier systems. Factory checked and third party inspected for use by SGS, Intertek, TUV, etc. Specifications differ between nations,
The metal beam guardrail system is the most commonly used road safety barrier system worldwide. The main reason for its widely application is that it consists of a rigid post and a flexible and energy absorbing spacer block design, which has been approved by crash test as being highly effective in reducing snagging and preventing vehicles from crossing over the rail.
Tests show that in automobile accident, the impact power is greatly absorbed by the deformation of the posts and blocking piece. At the time the w rail and posts separate, the w rail provides a re-directive function, guiding the vehicle back to traffic flow and avoid the chance of the vehicle crossing over the rail.
Tongsu Traffic produce and supply metal beam guardrail system and accessories worldwide. Well known for their trustworthy and professionalism, our experienced salesman will always provide expert response and we have completed countless projects for home and abroad.
Our metal beam guardrail system has been fabricated in maximum conformity with AASHTO M180 and relevant international standard designation and you are rest assured.
Never save money when it is involving people and road safety, your safety our job!
Specifications
l 2m pole spacing
l Height of rail 700 mm to 750 mm
Features
l Optimal visibility, improving driving mood and safer
l flexible resistance of a rigid rail with the bending resistance of the poles and deflection of spacer
l Can be applied for locations such as verge or central, as well as roadside.
Warranty
1 year warranty
Metal beam guardrail should have a service life of 20 years to 50 years or even more according to different environment. If the quality is perfect for the first year the rail's working life should be long lasting.
Certification
AASHTO M180, ISO9001, CE
GENERAL INFORMATION
1. DESCRIPTION
Our Highway Guardrail Beam meet AASHTO M180 Class A, Class B, Type I and Type II, and SGS Test Report showing the goods meeting AASHTO M180 (Standard Specification for Corrugated Sheet Steel Beams for Highway Guardrail) for each order is available upon request.
Classification, materials, mechanical properties, coating requirements and ordering information of highway guardrail are accurately described and designated according to AASHTO M180.
2. SPECIFICATIONS
Classification, materials, mechanical properties, coating requirements and ordering information of highway guardrail are accurately described and designated according to AASHTO M180.
2.1 Classification:
| Types: Surface treatment are divided into four types, and type I and type II are hot dip galvanized surface treatment. |
| Type I-Zinc coated, 550 g/m2 (1.80 oz/ft2) minimum single-spot. Type II-Zinc coated, 1100 g/m2 (3.60 oz/ft2) minimum single-spot. Type III-Beams to be painted. Type IV-Beams of corrosion resistant steel. |
| Classes: steel thickness is categorized into two class |
| Class A-Base metal nominal thickness-2.67 mm (0.105 in.) Class B-Base metal nominal thickness-3.43 mm (0.135 in.) |
2.2 Base Metal:
The beam, transition, end, and buffer sections shall consist of sheet made of open hearth, electric furnace or basic oxygen steel and shall meet the mechanical properties specified in Section 8 as below.
| Mechanical properties: The mechanical properties of the base metal shall conform to the following requirements: |
| Beams and transition sections: Yield Point, minimum, 345 MPa (50000 psi); Tensile Strength, minimum 483 MPa (70000 psi); and Elongation, in 50 mm (2 in.), minimum, 12 percent. |
| End and buffer sections: Yield Point, minimum, 227 MPa (33000 psi); and Tensile Strength, minimum 310 MPa (45000 psi). |
2.3 Coating requirements:
Type I and Type II beams:
The beams may be galvanized before or after fabrication.
The mass of coating shall conform to the requirements prescribed in Table 1 for the types
specified. The mass of coating is the total amount of galvanizing on both sides of a sheet or beam,
expressed as grams per square meter (oz/ft2) of sheet.
| Model | Min Check Limit Single-Spot Test | Min Check Limit Triple-Spot Test | ||
| g/m2 | oz/ft2 | g/m2 | oz/ft2 | |
| Type I | 550 | 1.80 | 610 | 2.00 |
| Type II | 1100 | 3.60 | 1220 | 4.00 |
2.4 Ordering information:
Orders for guardrail under this specification shall include the following information, as required, to adequately described material:
- Quantity (linear meter or number of pieces).
- Class of guardrail.
- Types of guardrail.
- Effective length of beam section 3.8 mm or 7.6 mm.
- Shape (W-beam or Thrie-beam).
- Exceptions to this specification or special requirements, if any.
 |
| We always confirm orders by detailed drawings of highway guardrails, sales agreement, and designated standards and norms, and we always respect the drawings, sales agreement, designated standard. We always use our professional and sincerity to serve our clients, client's satisfaction and friendship is our persuit. |
3. PRODUCTS
Our complete highway guardrail systems including w beam guardrail, Thrie beam guardrail, highway guardrail post, spacer, end terminal, reflector, bolts, etc.
Details and Parts Names
Item | Highway Guardrail Parts Names | Remark |
1 | W Beam | Also Guardrail Beam, Two Wave Corrugated Beam |
2 | Post | |
3 | Spacer | Also Block, Blockout, Blocking Piece |
4 | Bolts, Nuts, Washers | Anti-Theft Bolts, Nuts, Washers available |
5 | Reflector | Also Cat's Eye |
6 | Thrie Beam | Three Wave Guardrail Beam |
7 | W to Thrie Beam Transition | |
8 | End Terminal | Fishtail and Bullnose, End Anchorage, etc. |
9 | Crash Cushions | Also Impact Attenuators |
4. OTHER RELEVANT PRODUCTS
Crash Cushion, Corrugated Steel Pipe Culvert, Highway Noise Barrier, etc.
5. CERTIFICATES
SGS Test Report meeting AASHTO M180, ISO9001, ISO14001, etc.
 |
| AASHTO Test by SGS for Highway Guardrail Beam and Crash Barrier Post |
 |
| Our various certificates |
6. COMPANY PROFILE
Suzhou Tongsu Traffic Engineering Co., Ltd. Is a professional manufacturer and exporter of complete system of highway guardrail, crash barrier and road safety products.
Equipped with state-of-the-art fabrication equipment such as W Beam and Thrie Beam Guardrail cold roll forming machine, uncoiling slitting recoiling Line, cold bending machine, punching machine, hot DIP galvanizing plant. Tongsu Traffic can manufacture super quality goods as below:
Highway Guardrail
Crash Barrier
Road Furniture and construction materials
Tongsu Traffic manufacture highway guardrails according to AASHTO M180, JT/T281-2007 and relevant international standards. And we are ISO9001, ISO14001 certified. Our superior quality guardrail products can make our customers always satisfied.
7. CLIENT VISIT AND MEETING
 |
| We have been exporting to more than thirty countries and we warmly welcome our client's visit! |
8. TRADE SHOW AND EXHIBITION
 |
| We attend professional road traffic safety shows and exhibition all over the world |
We mainly attend traffic safety shows and exhibition as below:
| Gulf Traffic | Intertraffic Amsterdam | Intertraffic China |
| TranspoQuip in Brazil | Intertraffic Istanbul | Intertraffic Indonesia |

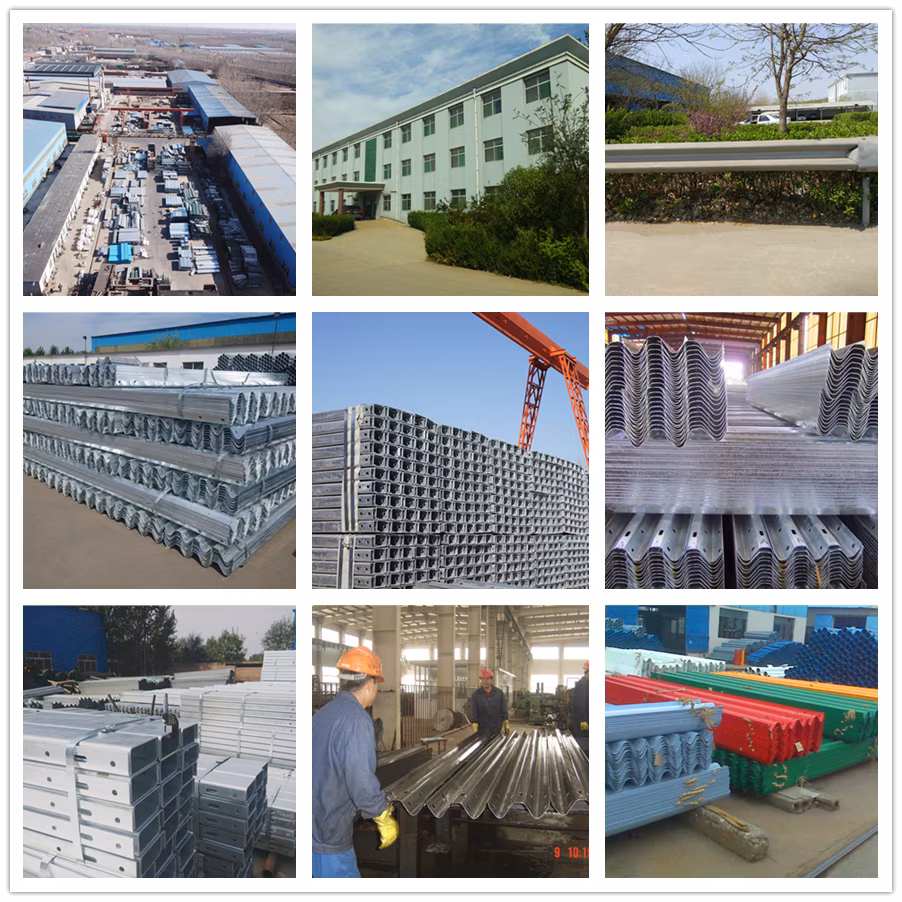

9. FACTORY AND WORKSHOP
 |
| Our highway guardrail factory can manufacture crash barrier and relevant road safety steel products 50000 metric tons per year, which can meet lead time for most orders from our clients. |

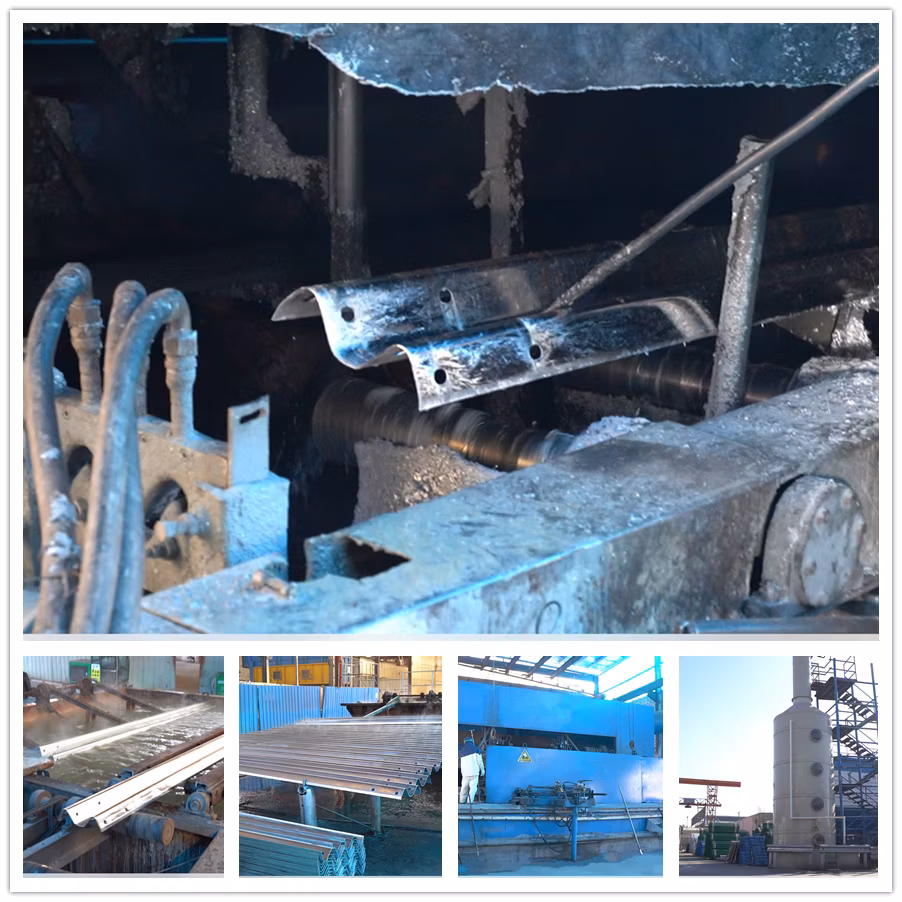

10. PRODUCTION PROCESS
 |
| 10.1 Fabrication of highway guardrail beam: Steel Coil, Sampling,Tensile Test, Remove Steel Coil Edge,Flatten, Punching, Shearring, Cold Roll Formed with Highway Guardrail Roll Forming Machine, Accurate Correction |
 |
| 10.2 Hot Dip Galvanizing Process: Pretreatment, Acid Wash, Pre-galvanization, Hot Dip Galvanized, Water Cooling, Zinc Coating Check, Deactivation, Repair or Remedy |

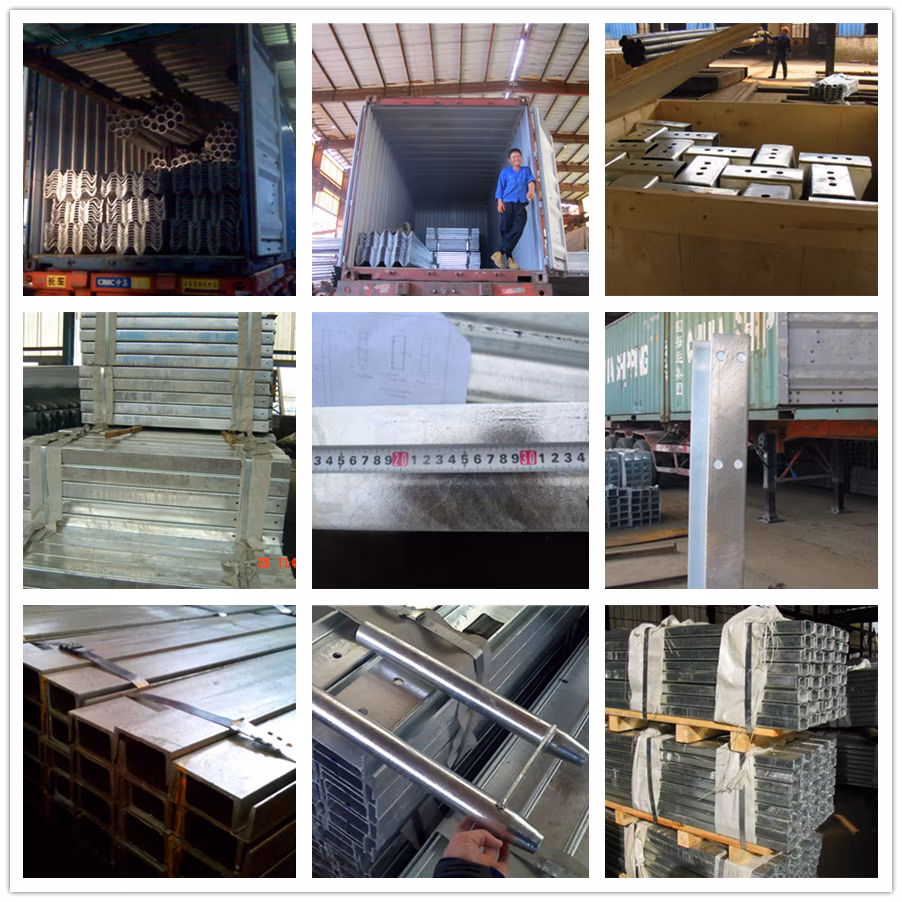

11. SHIPMENT
 |
 |
| We have been shipping highway guardrail products to so many countries such as: Southeast Asia: Malaysia, Indonesia, Sri Lanka, Brunei, The Phillipines, India, etc. Middle East: U.A.E, Saudi Arabia, Kuwait, Oman, Qatar, etc. Africa: Mauritius, Ghana, South Africa, Kenya, Albania, Algeria, Congo, etc. Southern and Central America: Bolivia, Panama, Brazil, Columbia, Suriname, etc. |
